Laptopia! The World’s Weirdest Portable Computers

Twenty-one innovative, impractical, irresistable breakthroughs in mobile technology.

Posted by  | Monday, September 7, 2009

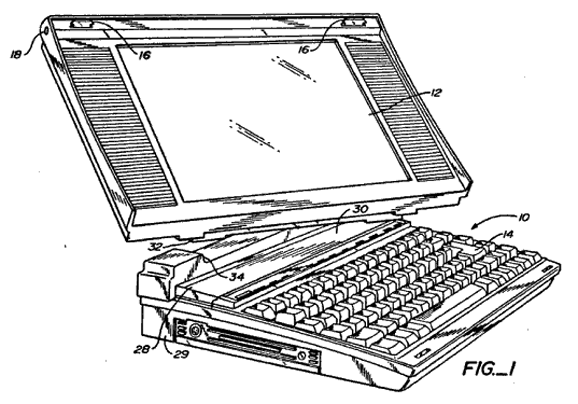

Laptop with swivel screenPivot and swivel mechanism for laptop display

Patent filed July 11th, 1992

Maybe it’s unfair to include this design in a gallery of weird laptops–it swivels like a desktop monitor in a way that was both clever and useful. Zeos sold this design as the Freestyle in the early 1990s; I don’t know how successful it was, but I’m guessing it wasn’t a huge hit, since it didn’t last long. Perhaps its reputation was hurt by a faulty floating-point coprocessor that caused it to get math wrong.



Slides: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
